Hybrid Beverage Body (steel + aluminum)
Technical Specifications:
BOX STRUCTURE:
-
Bent profiles in ASTM-A36 steel;
-
Longitudinal structure supported directly on the vehicle chassis and tubular transverse profiles at the ends of each bay, providing adequate rigidity to the forces transmitted by the weight.
CENTRAL SPINE:
-
Steel base, upper part in steel profiles designed to resist impacts;
DIVISIONS:
-
Cross panels in corrugated sheet steel;
ACCESSORIES:
-
Support for trolleys;
-
Trolleys;
-
Retractable aluminum platform built into all bays;
-
Reverse indicator siren;
-
Reverse sensor;
-
Cone support;
-
Cones;
-
Internal support handles;
-
External support handles;
-
Anti-guillotine end stop on doors;
-
Manual door lock;
-
Fixed safe on the chassis;
-
Internal LED lighting;
CONTRAN standardized items: -
Rear bumper Resolution 593|16;
-
Reflective strips | Resolution 643|16.
PAINTING:
FLOOR:
-
Smooth sheet steel with lower reinforcements
in bent profiles.
3º inclination for accommodating the load.
-
Cleaning with degreaser and chemical phosphatizer;
-
Base: Anti-corrosive primer;
-
Finish: Painted in the indicated color in PU;
PAINEL DIANTEIRO E TRASEIRO:
-
Frame in steel profiles interconnected to columns
with galvanized steel closure;
ROOF:
-
Longitudinal and transverse steel profiles,
aluminum closure;
CAPACITY:
-
Flat Body: 4, 6, 8, 10,12, 14 and 16 pallets.
-
Lowered Body: 8, 10 and 12 pallets.
SIDE DOORS
-
Extruded aluminum profiles fitted with nylon casters at the ends and a lower rubber profile for sealing; Each door slides on rails composed of extruded profiles and cast aluminum corners, and are individually supported by a spring counterbalance system, smoothing movement. The mechanical locking of the doors is independent for each side of the body.

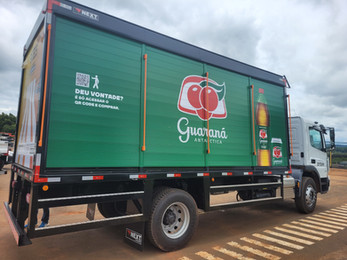

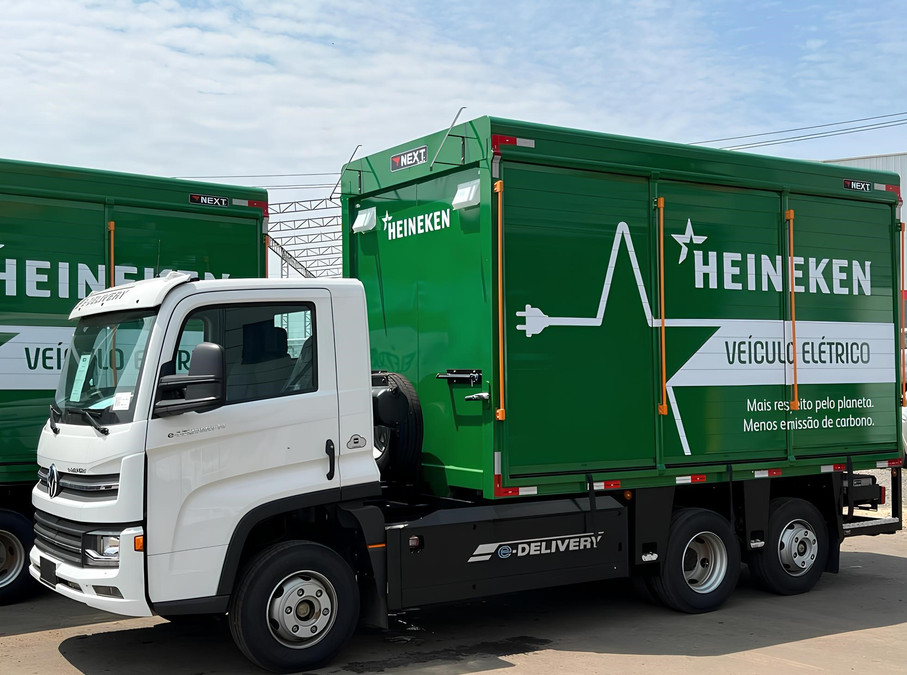

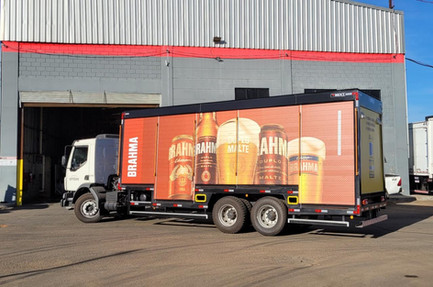

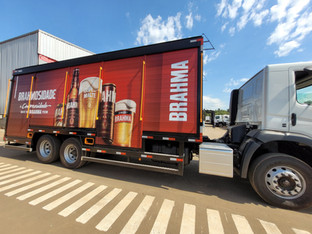

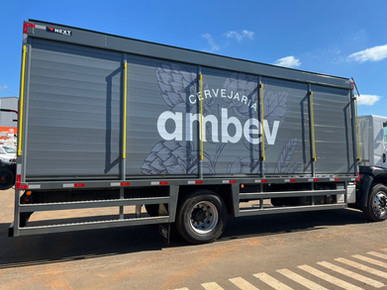

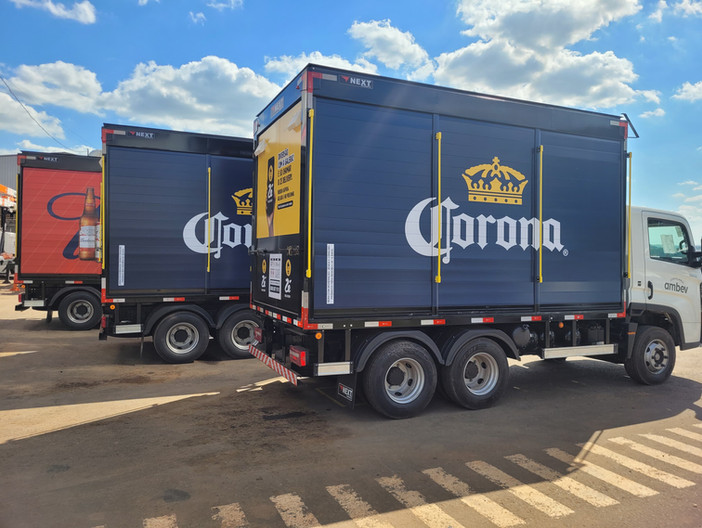

Photo Gallery
